The Galleon Truck Rack ships free in the lower 48 United States!
"ATTENTION: We just moved our factory from Madera, California to Corona, CA. All previous orders and the new ones will start production next week. Our sales department can update you on your order status and the estimated shipping or pick up date. Please call us at 1-888-877-2257 or (951) 271-3498 for all inquires".
This stake pocket mounted Truck Rack is an aluminum rack with both strength and style. It is, among other items, a truck tonneau rack!
The Galleon Aluminum Stake Pocket Rack is proudly made in the USA!

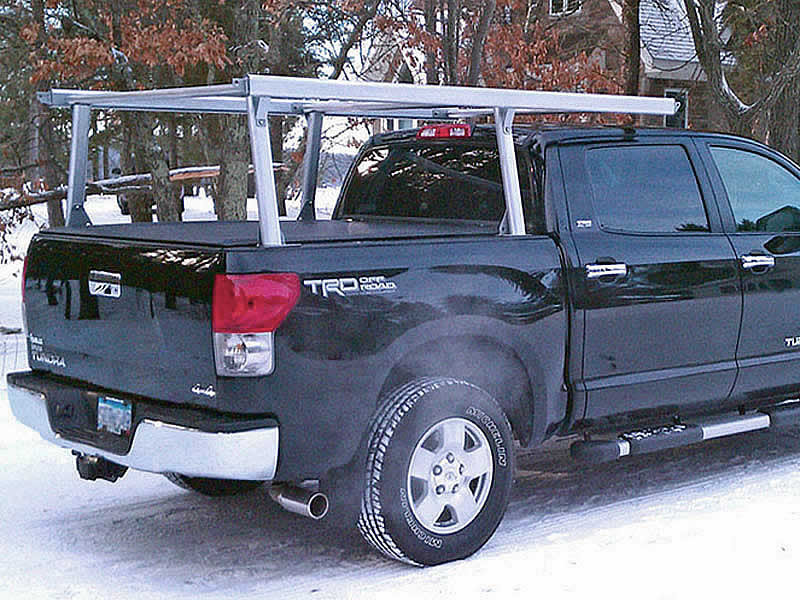

The Galleon Rack is a Sharp looking Tonneau Truck Rack
Galleon Stake Pocket Rack with Cargo
3-1/4” x 1-5/8” oval crossbars over the bed contain reinforcing ribs and a fir spar for greater strength
A Truck Rack of many uses
Many Tie-downs for all types of Cargo on the top…
A Galleon truck rack mounted on a 2011 Tundra Pickup Truck
A Galleon rack on a Ford F150 pickup truck
This stake pocket mounted Truck Rack is not just a Lumber Rack, Ladder Rack, Kayak Rack, or Canoe Rack. It is also a truck tonneau rack
Rear view of Extra Wide Galleon Rack with straight legs
- All Galleon Racks carry up to 500 lbs. and mount into the stake pockets found in the bedrails of most trucks. The Overhead Galleon Truck Rack works with roll-up tonneau covers that do not cover the stake pocket holes. If you have a Bak-Flip or other sectional tonneau cover that folds up, the standard Galleon Rack may not be compatible. See the Extra-Wide Stake Pocket Rack designed for such an application, which is shown in the Photo directly above.
- Mounts or removes in less than 10 minutes without drilling after initial assembly.
•Place inserts into truck stake pockets.
•Install bases and tighten draw bolts
•Mount remainder of rack
•Load your cargo.
- This rack is recommended for short bed trucks that need some additional length over the cab to carry long cargo. The overall length of the rack is 8.5 feet as measured from the tailgate. The length of the portion of the rack extending over the cab depends upon how long your truck bed is.
- Handsome and functional design is dynamically stable – the weight actually rests on the bedrails; not in flimsy stake pockets.
- Extruded aluminum legs, side rails and crossbars are oval-shaped for low drag and noise. Connectors and bases are steel that is first zinc plated and then all parts of the rack are powder coated a silvery aluminum color. Threaded hardware is stainless steel.
- Tie down cargo with ropes or straps from 8 different eyelet mooring points.
- Light weight and low drag design means that your truck will get more miles to the 'GALLEON' ; )
- Removable individual components each weigh less than 20lbs. Ships in two boxes, one weighing about 53 lbs and one weighing about 33 lbs.
- 2006 and earlier Toyota Tundras require special stake pocket inserts. Add $50 to below pricing.
- The standard Galleon rack will work with roll-up tonneau covers but not with sectional fold up tonneau covers. The extra wide Galleon rack with straight legs is designed to work with fold up covers such as the Bak-Flip covers. The top of the extra wide rack is also about 6 inches wider than the standard rack. NOTE: The geometry of the extra wide rack reduces the load rating of the wide rack to 350 pounds.
U.S. Rack™ products are warranted for a period of one year against all structural defects in materials and workmanship provided that they are assembled, installed, and used in accordance with all manufacturer’s specifications and instructions. U.S. Rack cannot warrant the powder-coating which is subject to scratching. See merchandise return policy
FREE SHIPPING on the Galleon Stake Pocket Truck Rack within the lower 48 United States! For shipping to Alaska or Hawaii, please call 1-888-877-2257
ATTENTION CHEVY & GMC OWNERS:
GM has modified the rear stake pockets for 2014 and later full size Chevy and GMC pickups and 2015 and later Colorado and Canyon pickups. This change requires a special insert box to mount all racks that mount into the stake pockets, which include the regular and wide models of the Stake Pocket Rack, the Galleon Rack and the Schooner Rack. When ordering your rack you will need to also order 1 pair of Insert Boxes from the accessories menu farther down the page.
Full size trucks number: 2015-TCB-BOX
Colorado and Canyon: 2015-TCC-BOX
Ground shipping within the
lower 48 United States is included in the below prices
